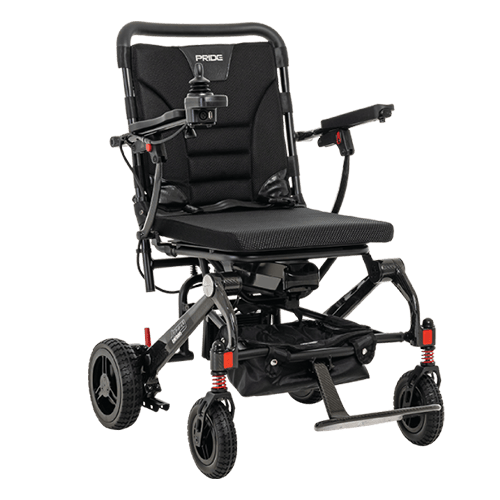

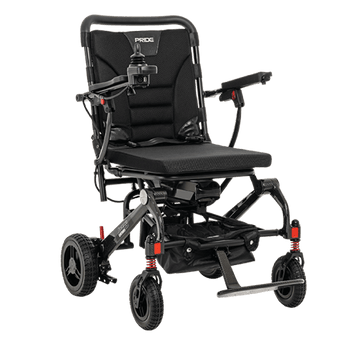

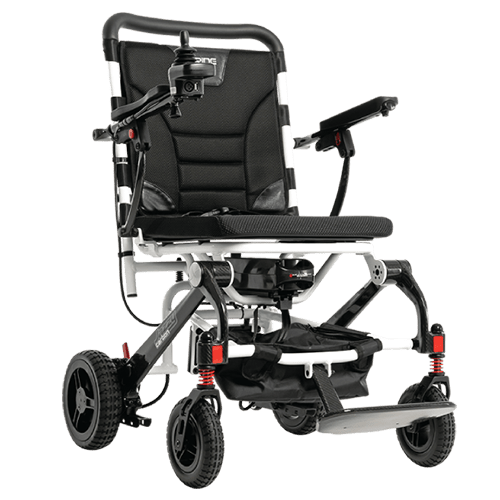

Jazzy® Carbon

$3,499.00 $2,539.00 Save 27%
Shipping calculated at checkout.
Color: Black
Style: Jazzy® Series

Model #: Jazzy® Carbon

Description

With carbon fiber technology, the Jazzy® Carbon Power Wheelchair becomes your greatest travel companion.

You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability.

Jazzy® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.

Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.

Weighing in at a stunning 43.6 pounds, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

Features

  • 300 lb. weight capacity
  • Removable joystick for transporting with built in USB charger
  • Airline compliant lithium battery**
  • Front suspension for a smooth ride
  • Ultra-lightweight, carbon fiber frame specifically designed for traveling
  • Compact base easily folds and unfolds for easy transport in a few easy steps
  • Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort
  • Free-wheel levers to easily disengage the brake allowing this lightweight power chair to be pushed like a manual chair
  • Included under-seat storage and adjustable lap belt
  • When folded 28.3"x12.2"x24"
Overview

With carbon fiber technology, the Jazzy® Carbon Power Wheelchair becomes your greatest travel companion.
You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability.

Jazzy® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.

Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.

Weighing in at a stunning 43.6 pounds, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

Size

Model
Jazzy® Carbon
Weight Capacity 300 lbs.
Turning Radius1 24"
Maximum Speed1 Up to 3.7 mph
Ground Clearance3 2"
Overall Length3 37"
Overall Width3 24"
Seat-to-Ground Height 19"
Seat-to-Foot Platform Height 14.5" (no adjustment)
Front Wheels 7"
Rear Wheels 8.5"
Seat-to-Floor Range with Standard Cushion 20.75"
Seat-to-Floor Range without Cushion 18.75"
Power Elevating Seat NA
Seat Weight(s) NA
Battery Sizes 24V 12AH (288WH)
Suspension Front
Total Weight Without Batteries3,5 39 lbs.
Total Weight With Batteries3,5 43.6 lbs.
Heaviest Piece When Disassembled3 N/A
Standard Seating Material: Black, Foam
Dimensions: 17" x 17"
Maximum Seat Size 17" x 17"
Per Charge Range Up to 9.3 miles
Drivetrain 24v/250W Brushless motors
Standard Electronics 35A Brushless Micon
HCPCS Codes Non-coded: K0899
Braking System Regenerative and electromechanical
Battery Weight4 4 lbs.
Battery Charger Off-board, 2-amp lithium-ion
Weight of Heaviest Piece NA unit folds and doesn't disassemble
Warranty Frame: Lifetime limited;
Drivetrain: 1-year limited;
Electronics: 1year limited;
Batteries: 1-year limited
